01
VIST® Lab
The stationary platform: realistic workflow and training for the entire team, not only the interventionalist.
Home / Simulators / VIST G7
Mentice · Endovascular interventions

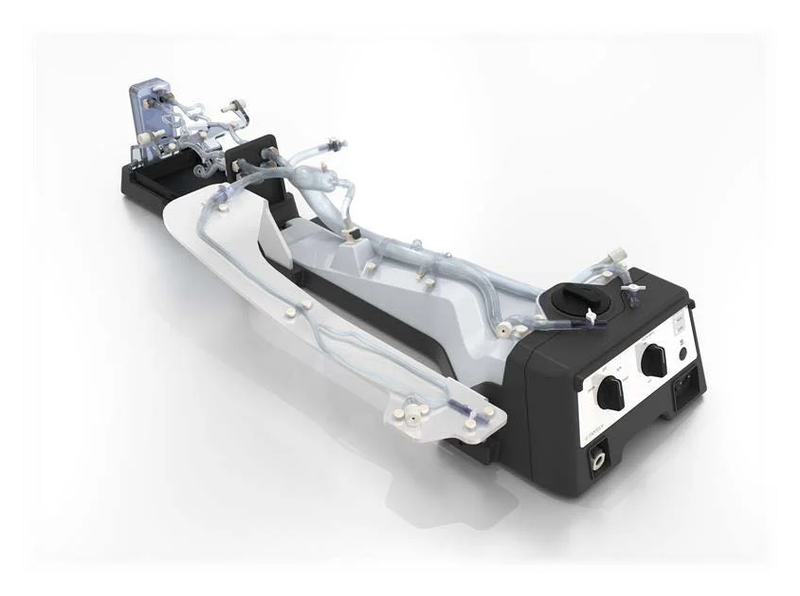

VIST® G7
Twenty-seven modules — from neurovascular thrombectomy to aortic endograft. With the original catheters and guidewires used in the suite.
The training content, in full
Seven areas.
Twenty-seven modules.
And the numbers are Mentice's.
The numbers are taken from the Mentice module and case review, 2024 edition. All modules except Echo Trainer run on the VIST G5, G7 and G7+ hardware.
AREA
CASES
MODULES
STATUS
Peripheral interventions
61
4 modules
AVAILABLE
Neurovascular interventions
53
5 modules
AVAILABLE
Coronary interventions
34
3 modules
AVAILABLE
Structural and electrophysiology
33
6 modules
AVAILABLE
Embolotherapy
25
4 modules
AVAILABLE
Aortic interventions
16
2 modules
AVAILABLE
Multidisciplinary
9
3 modules
AVAILABLE
TOTAL
232
PATIENT CASES
IN 27 MODULES
The figure 232 is the manufacturer's. We verified it: the sum of the seven areas from its own data gives 231. The difference is one case and is unexplained in the source — we have asked Mentice. Until then both figures appear here.
27
MODULES
7
AREAS
What others cannot do
Bifurcation requires
two hands and two devices.
In bifurcation stenting, balloon-assisted coiling or the buddy wire technique two devices work simultaneously in the vessel. VIST® G7+ drives them in parallel — up to five at once — using Mentice's patented technology.
- Bifurcation stenting with two guidewires
- Balloon-assisted and stent-assisted coiling
- Buddy wire technique
- Deployment of side-branch devices

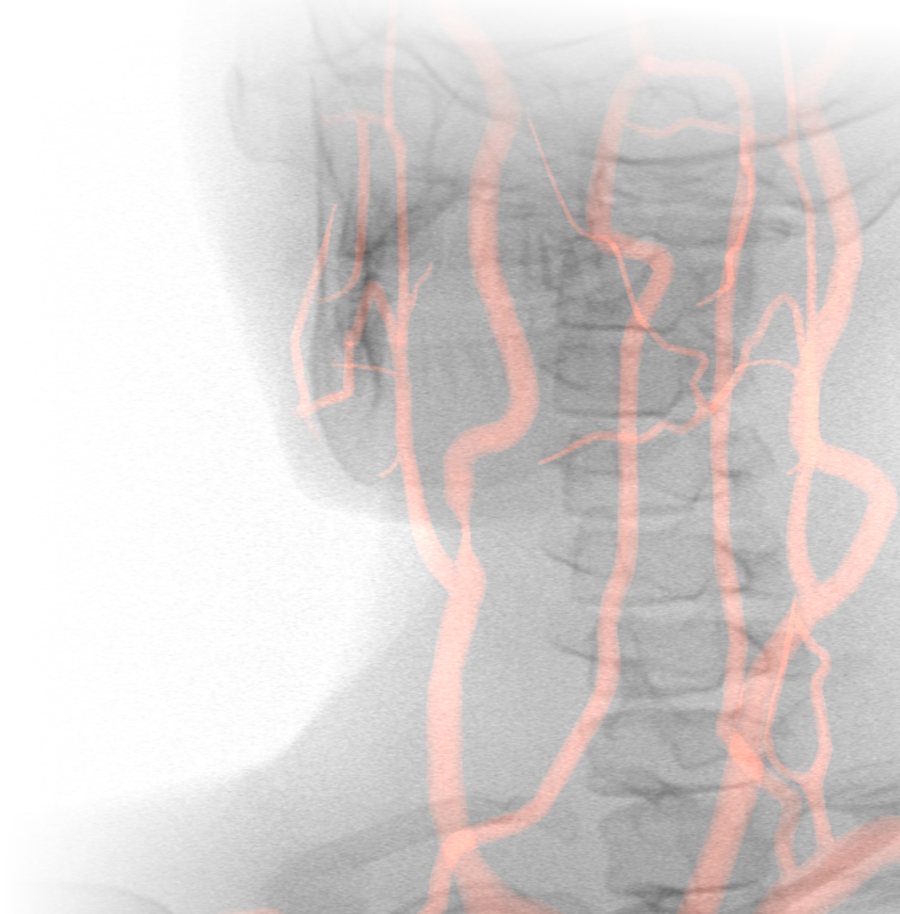

Where minutes are brain
Thrombectomy in
ischaemic stroke.
Nine cases for thrombectomy alone, plus six for the full intervention in acute ischaemic stroke and twenty-two for the carotid vessels.
- Five different anatomies, including severely tortuous vessels
- Occlusions left and right, MCA (M1)
- Direct aspiration and ADAPT technique
- Deployment, positioning and safe retrieval of a stent retriever
- Working with C-arm, biplane and magnification to assess the thrombus
- The Simmons manoeuvre and microcatheter exchange as separate exercises
All cases have step-by-step guidance. The accompanying iPad application lets the course director trigger a complication in real time.

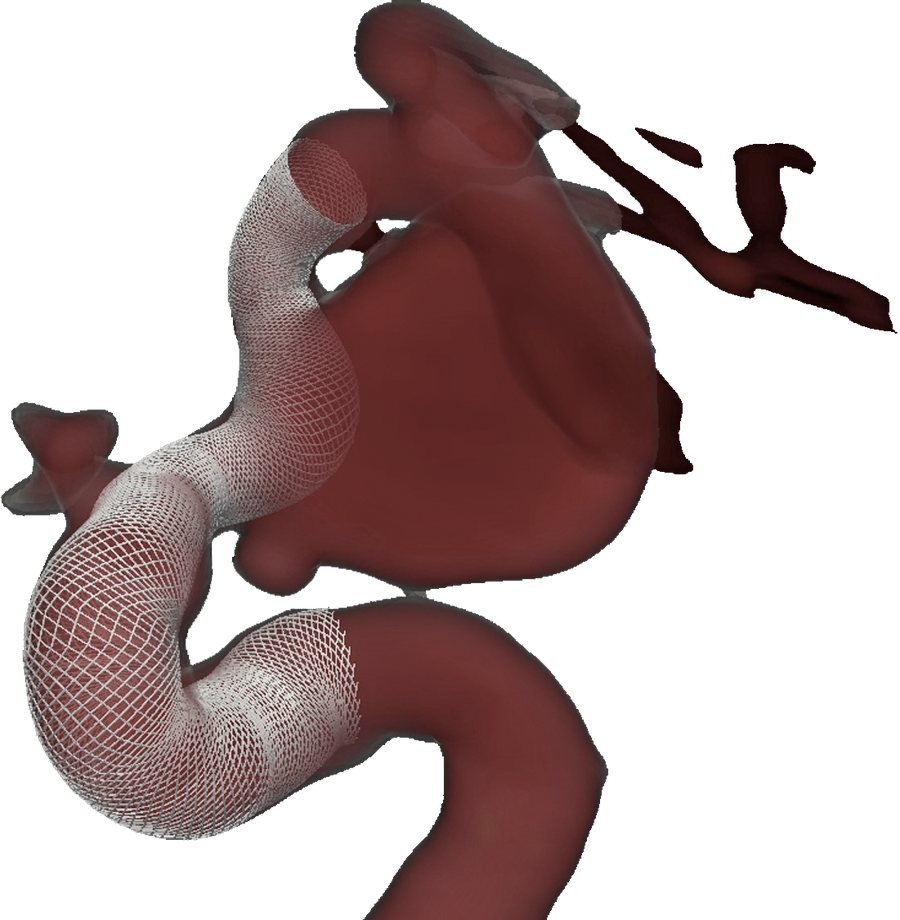

Aortic interventions
EVAR and TEVAR —
sixteen cases.
Ten cases for endovascular repair of the abdominal aorta and six for the thoracic. Endograft positioning, sizing and deployment — in anatomies that do not forgive mistakes.
10
EVAR
6
TEVAR
Around the device
EXTENSIONS AND PLATFORMS
02
G7 Extension
Second leg for bifemoral access. Both fit in one case.
03
VIST® Case-It
The specific patient's anatomy is imported and assembled on a template to a complete anatomy — for rehearsal before the intervention itself.
04
Virtual Patient Link
The simulation runs directly through the angiography equipment — with the real console and the real monitor in the suite.
05
TEE Add-on
Transoesophageal echocardiography for the structural modules; Echo Trainer is the only module with separate hardware.
06
Accessories
Pedal from a real angiography suite, haptic syringe, indeflator and stent release handle.
FOR PUBLIC TENDERS
Documentation is also available in Bulgarian.
The product sheets, the module and case review, and the CE certificate for VIST® G7 exist in a Bulgarian version — translated as part of a procedure before the Ministry of Health. We supply them when preparing a technical specification.
If you need a comparison with the requirements of a specific procedure, we carry it out before the proposal — together with the assessment of whether the device actually suits your training programme.
Independent assessment
An endovascular programme depends on case volume and on a team. Before the proposal we clarify whether VIST® G7 is the right step for your hospital — including when the answer is “not yet”.
We bring VIST® G7 to you.
The device travels in two cases. The demonstration takes place in your suite, with your residents at the guidewires.
